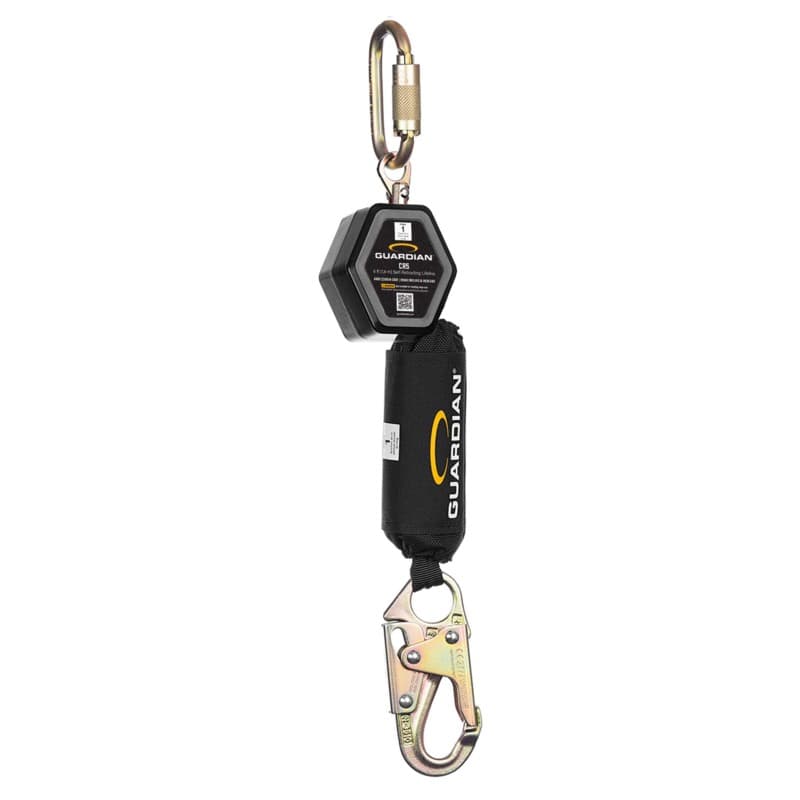

CR5 Personal Self-Retracting Lifeline

New: The CR5 Personal SRL is part of Guardian's strongest lineup of SRLs in the industry. This feature rich 6' web SRL has been built for strength and durability to take the toughest tasks while working at height. Integrated with a stronger housing, increased dynamic & static strength, integrated fall clearance charts, and a digitally enabled QR code for instant access to product specifications. This lightweight Class 1 Personal SRL can be used in a combination of either fall arrest or travel restraint applications.

If known, input the specific Part Number here of a pre-configured product:


A NEW STANDARD
ANSI Z359.14-2021

The new American National Standards Institute (ANSI) Self-Retracting Device (SRD) manufacturing standard Z359.14-2021 came into effect on August 1st, 2023.

Click the button to learn more about our featured ANSI Z359.14-2021 Class 1 and Class 2 SRDs and an outline of the most significant changes brought about by the updated standard.

Find out more

Features

  • 6' web lifeline
  • Swivel top connection point: Swivels 360 degrees to ensure the device remains in the best orientation during use and also helps prevent lifeline snagging or tangling
  • Impact modified thermoplastic housing: Super lightweight & durable for long-lasting use in the toughest applications
  • Digitally enabled labels: QR code for quick and easy access to up-to-date safety and product information
  • Guardian shock pack cover: Helps increase product longevity and protect safety labeling
  • Integrated fall clearance charts: Fall Clearance charts integrated into shock pack cover for easy access to clearance charts anytime, anywhere
  • Reinforced webbing guide: Added strength and reduces webbing friction
  • Multiple hook options available: Choose steel or aluminum snap or rebar hooks, depending on job requirements and anchorage type


Specifications

Product weight

3.48LB / 1.36KG

Product length

8.6'' / 20.32CM

Product height

3.93'' / 7.62CM


Compliance

This product meets the following regional compliance standards

  • ANSI Z359.14-2021

  • OSHA 1910.140

  • OSHA 1926.502


Industries

This product is often used in the following industries

  • Construction
  • General Industry
  • Renewables
