Arc-O-Pod System Kit

Products / Confined Space & Rescue

Product images are representative only.

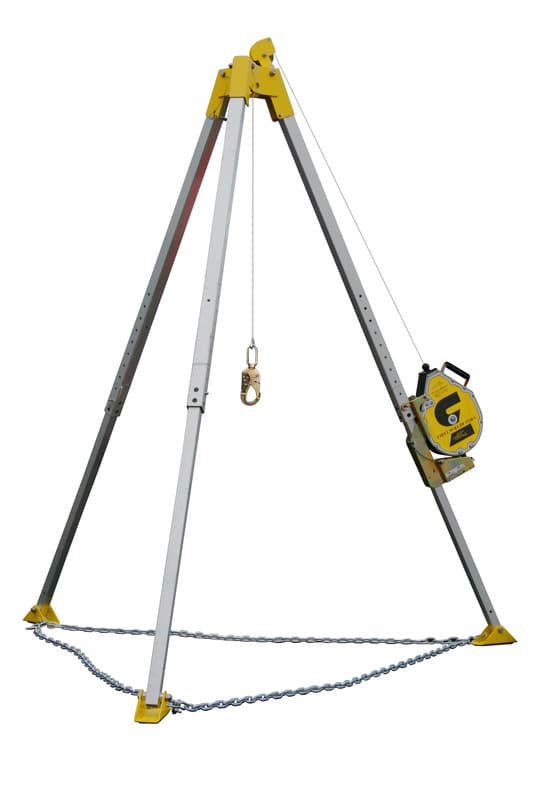

Guardian's Arc-O-Pod is an affordable, high quality Rescue and Retrieval system. The Arc-O-Pod is a 90 inch aluminum tripod that is lightweight, portable, and easily set up. It also includes a storage bag for easy transportation between jobsites. Its adjustable, locking legs can be sized in 2" increments to best fit the layout of a given work area, and are kept in position with locking push pins. The tripod can be sized to fit a maximum 5-1/2 foot diameter hole, and is specially designed to eliminate all risk of slippage or movement when in use. Its high-strength topper incorporates a pulley system to facilitate the proper use of mechanical lifeline equipment, and is also equipped with drop forged steel eyebolts for use as an anchorage point for a secondary or back-up system. The Arc-O-Pod also comes complete with a quick-mount bracket compatible with the Guardian 3-Way SRL.

If known, input the specific Part Number here of a pre-configured product:



Features

  • PRODUCT MAY HAVE EXTENDED LEAD TIMES. PLEASE CALL FOR AVAILABILITY.
  • High quality, 90-inch (max height) tripod
  • Lightweight
  • Highly portable


Specifications

Product weight

135LB / 61.23KG

Product length

60'' / 152.40CM

Product height

84'' / 213.36CM


Compliance

This product meets the following regional compliance standards

  • OSHA 1910.140

  • OSHA 1926.502

  • ANSI Z359.1
