Stacker Bracket Frame
Products / Scaffolding
Product images are representative only.

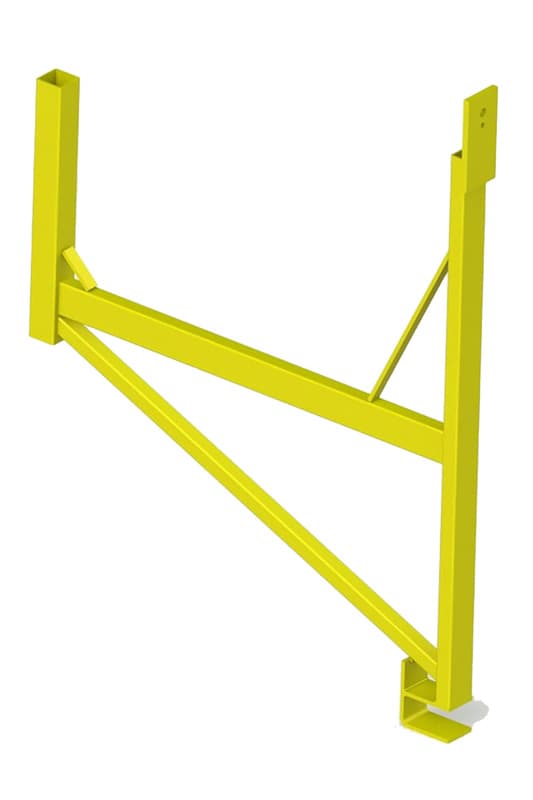

The Guardian Stacker Bracket Frame is the primary support mechanism for the Stacker Bracket System, and is where planks rest to form the walking surface. It is composed of durable and weather resistant powder-coated steel, and is ideal for eaves of up to 18 inches in width. The Stacker Bracket System extends 17 inches below the top plate, and allows guardrails to be installed 28 inches away from the wall.
SKU: 61129
Features
- Great for eaves up to 18”
- Platform is 17” down from top plate
- Rails are 28” out from wall
Specifications
Product weight
10LB / 4.54KG
Product length
30.13'' / 76.20CM
Product height
28.9'' / 71.12CM
Compliance
This product meets the following regional compliance standards
OSHA 1910
OSHA 1926 Subpart M
